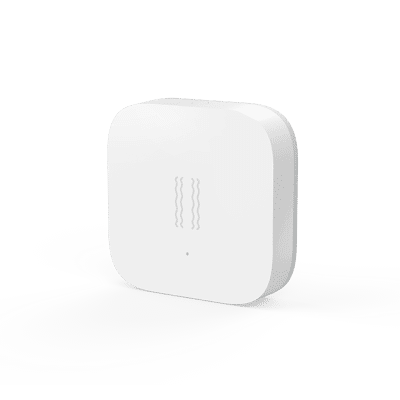

Aqara Vibration Sensor T1
Triple-axis vibration detection sensor for comprehensive security monitoring
Advanced Vibration Detection for Comprehensive Security

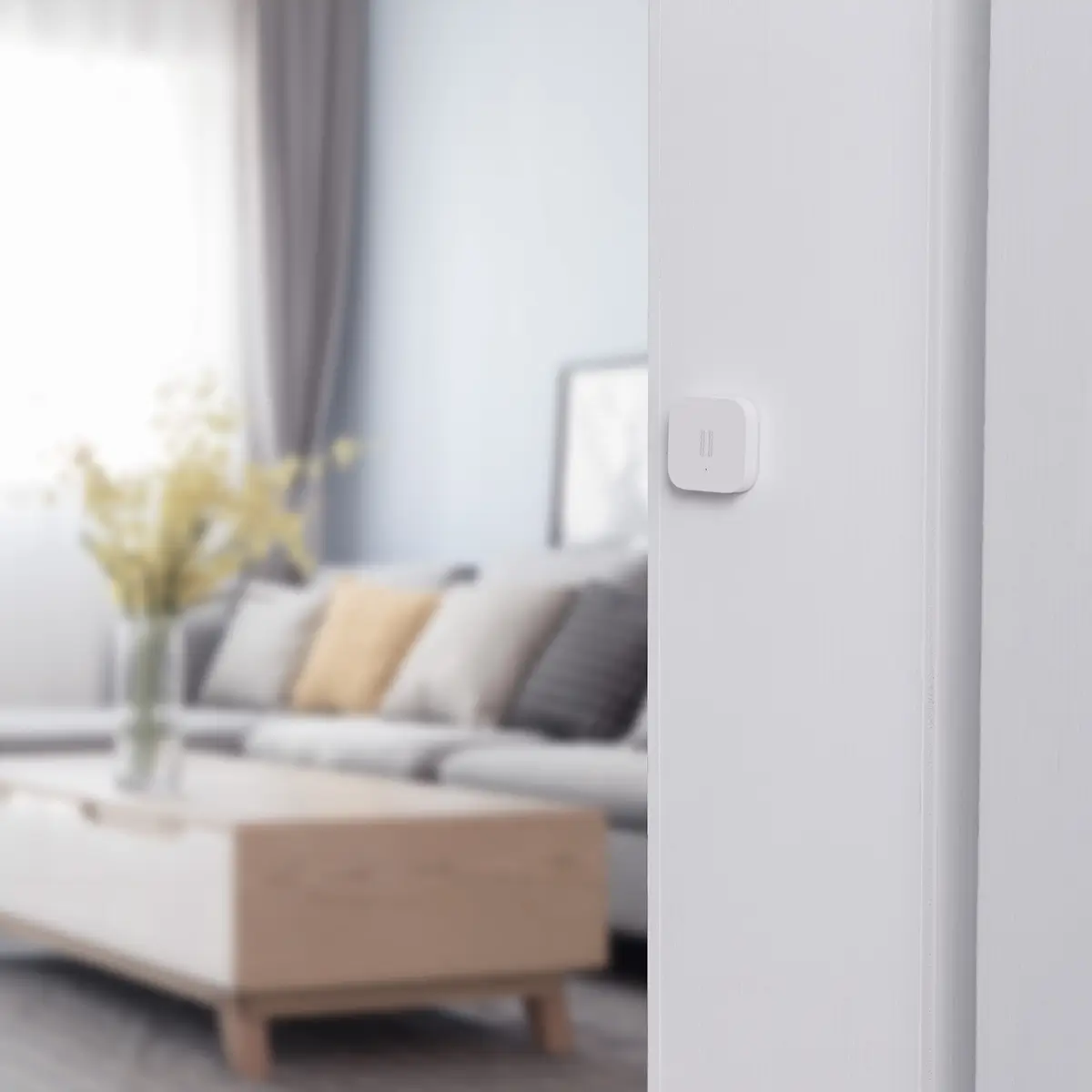

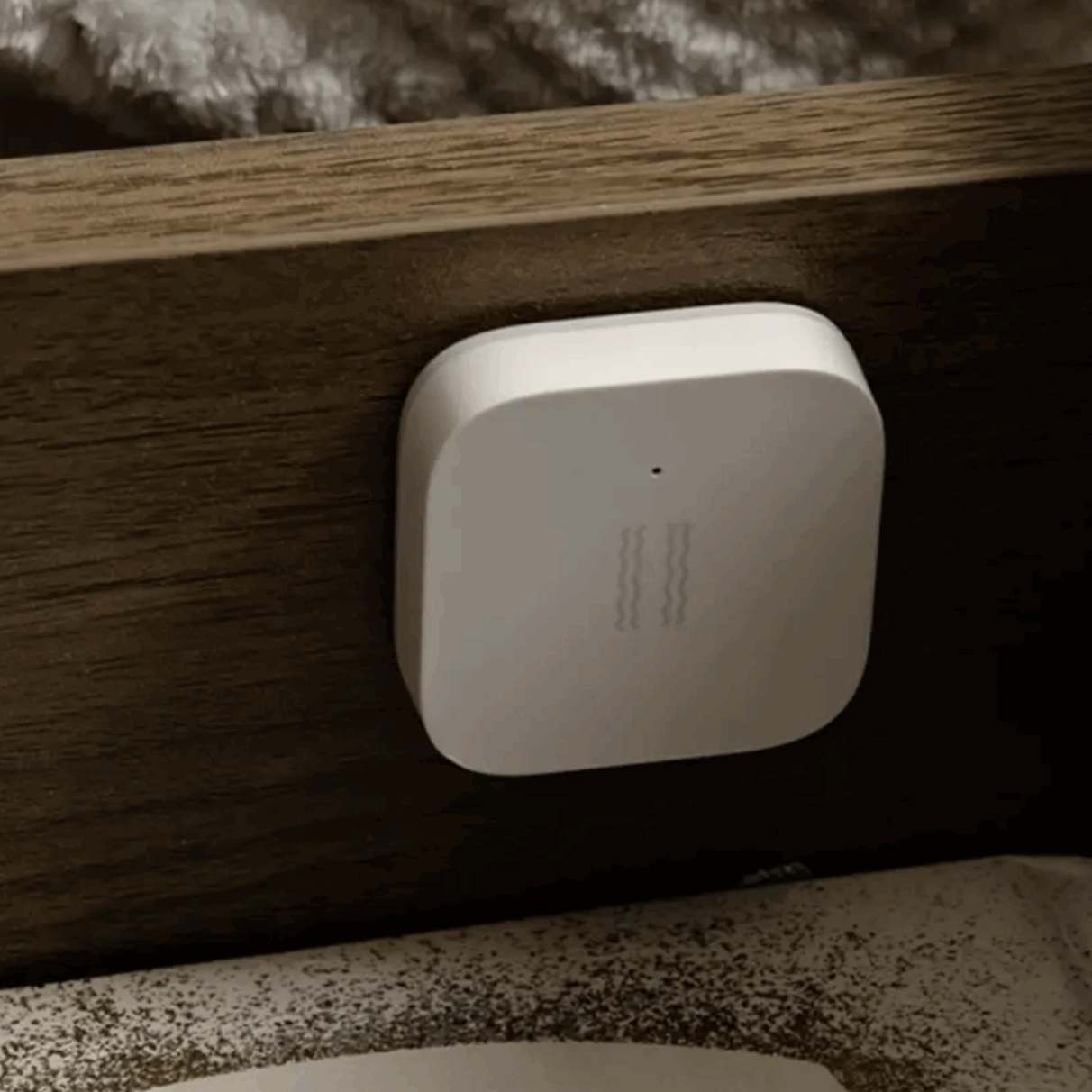

The Aqara Vibration Sensor T1 uses high-precision triple-axis acceleration detection to monitor vibrations, impacts, and tilting movements. Ideal for securing windows, doors, safes, and valuable items, it provides instant alerts for any unauthorized movement or tampering attempts.
How It Works
The sensor employs a sophisticated triple-axis accelerometer that detects vibrations across three dimensions. It can distinguish between different types of movements – from gentle taps and knocks to strong impacts and device tilting. The sensor analyzes vibration patterns to reduce false alarms while ensuring reliable detection of actual security threats.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VS-SHV-E0 |
| Detection Technology | Triple-axis Acceleration Sensor |
| Detection Types | Vibration, Impact, Tilt |
| Sensitivity | 3 adjustable levels |
| Wireless Protocol | Zigbee 3.0 |
| Battery Type | CR2032 Coin Cell |
| Battery Life | Up to 2 years (normal use) |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 46 × 30 × 18 mm |
| Installation | Adhesive or screw mounting |
