Smart Door Magnetic Detector D1

Matter-Compatible Door/Window Contact Sensor

The RiVaSmart Smart Door Magnetic Detector D1 Series monitors open/close status of doors and windows with magnetic reed switch technology. Features Matter over Thread connectivity, 2-year battery life, and instant response for home security automation.

  • Technology: Magnetic Reed Switch
  • Connectivity: Matter over Thread
  • Detection Range: 25mm separation
  • Battery: CR1632 (2 years)
  • Response Time: < 1 second
  • Works with: All Matter ecosystems, Apple Home, Google Home, Alexa

RiVaSmart Smart Door Magnetic Detector D1 Series

Contact sensor for door and window status monitoring with Matter support

In Stock • Matter Support • Open/Close Detection • 2-Year Battery

Reliable Door and Window Monitoring with Matter Compatibility

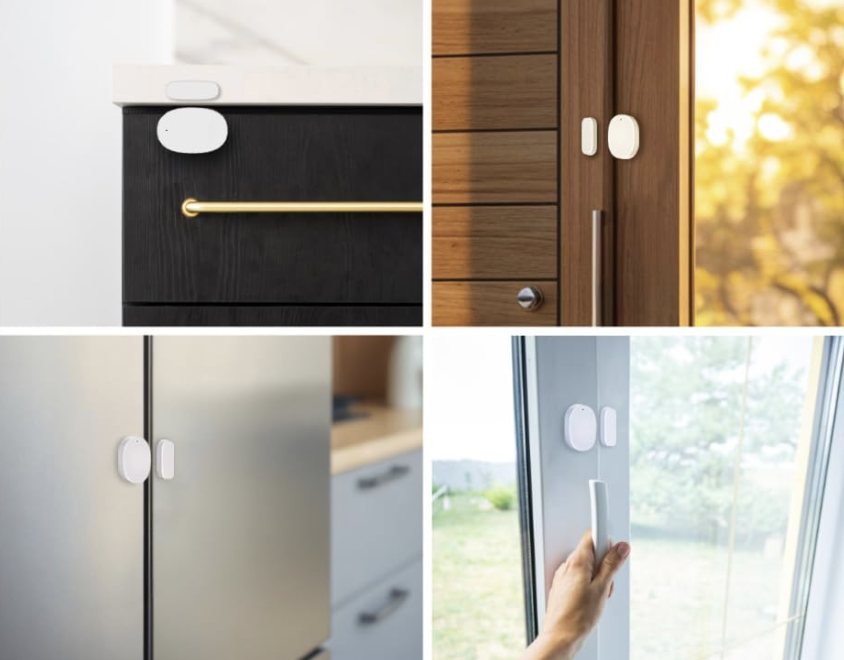

The RiVaSmart Smart Door Magnetic Detector D1 Series is a contact sensor with native Matter support, designed to monitor the open/close status of doors, windows, and other entry points. Using magnetic reed switch technology, it provides instant status updates and security alerts while seamlessly integrating with all Matter-compatible smart home ecosystems.

How It Works

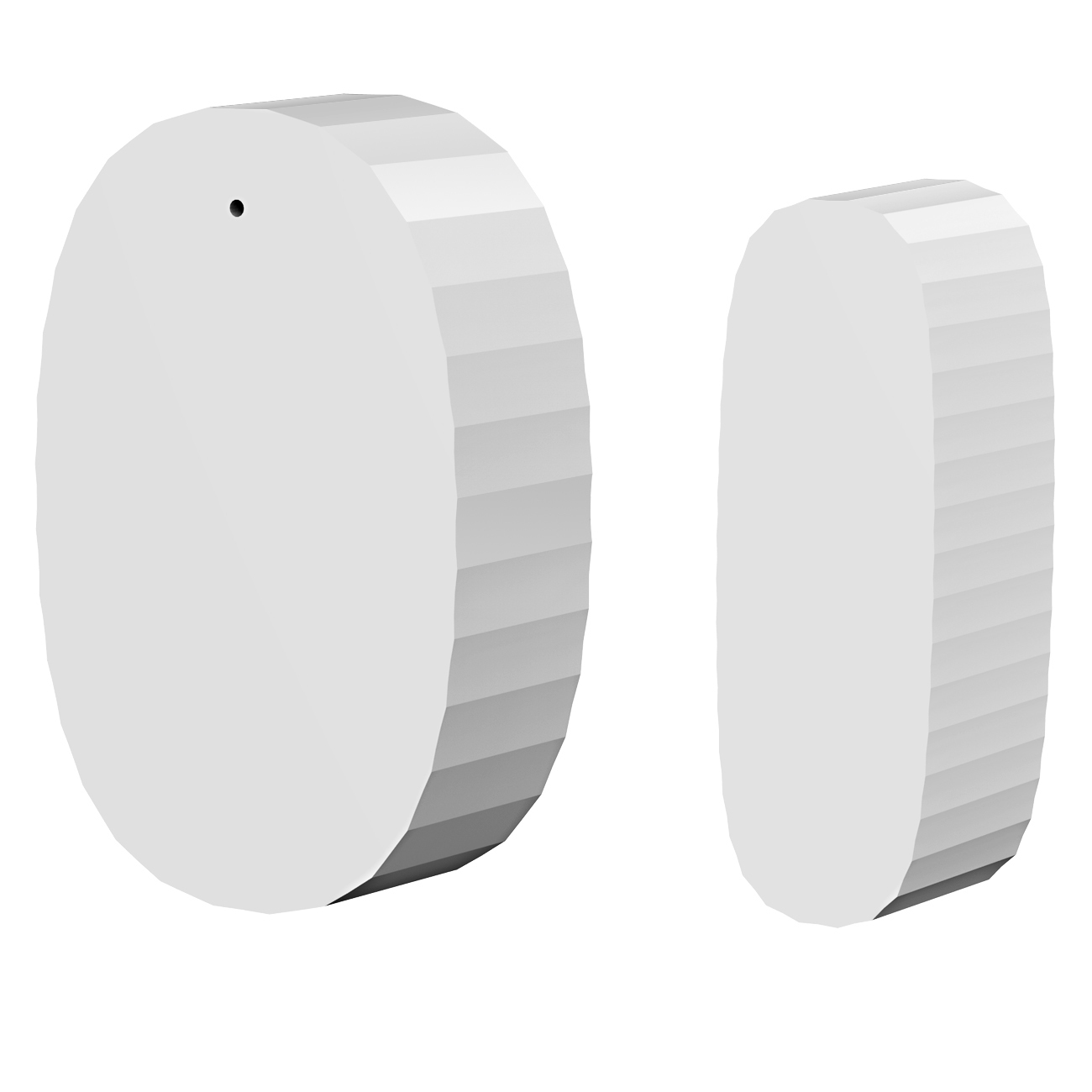

The D1 Series consists of two components – a sensor unit and a magnet. When the door or window is closed, the magnet keeps the reed switch in the sensor unit closed. When opened, the magnet moves away, opening the switch and triggering an immediate status change. With Matter over Thread connectivity, it sends real-time notifications to your smartphone and can trigger automated scenes like turning on lights when a door opens or activating security systems when unauthorized access is detected.

Technical Specifications

Specification Details
Model Series D1 Series
Detection Technology Magnetic Reed Switch
Wireless Protocol Matter over Thread
Detection Distance Up to 25mm separation
Detection Type Open/Close Status
Response Time < 1 second
Battery Type CR1632 Coin Cell
Battery Life Up to 2 years (normal use)
Operating Temperature -10°C to 50°C
Sensor Dimensions 55 × 22 × 12 mm
Magnet Dimensions 30 × 12 × 8 mm
Weight Approx. 25g (sensor), 15g (magnet)
Installation Adhesive tape or screws
Certifications Matter, CE, RoHS
