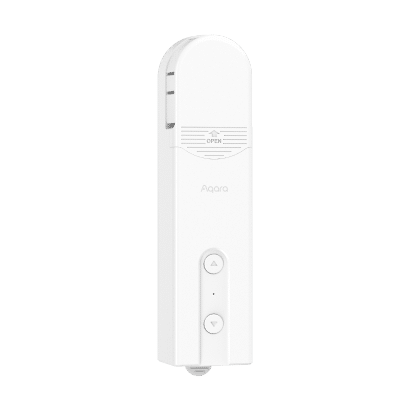

Aqara Roller Shade Driver E1
Smart motor for roller shade automation
Smart Automation for Roller Shades
The Aqara Roller Shade Driver E1 is a smart motor designed to automate roller shade systems. Featuring universal compatibility with various roller shade mechanisms, quiet operation, and easy installation, it transforms manual roller shades into smart, automated window treatments that can be controlled via app, voice commands, or automated schedules.
How It Works
The E1 Roller Shade Driver replaces the existing chain or bead chain mechanism of your roller shade. It connects to the shade’s internal tube and rotates to raise or lower the shade fabric. Through Zigbee connectivity, it integrates with your smart home ecosystem, allowing for precise control over shade position, scheduled operations, and scene automation with other Aqara devices like light sensors and temperature sensors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RSD-M1 |
| Compatibility | Standard roller shade tubes (28mm, 35mm, 44mm diameter) |
| Max Shade Weight | Up to 8kg |
| Max Shade Width | Up to 3 meters |
| Tube Diameter | 28mm, 35mm, 44mm (adapters included) |
| Motor Type | Quiet DC motor |
| Noise Level | < 40dB during operation |
| Power Supply | DC 24V (power adapter included) |
| Battery Backup | Built-in rechargeable battery (manual operation during power outage) |
| Wireless Protocol | Zigbee 3.0 |
| Control Methods | App control, voice control, scheduled automation, manual buttons |

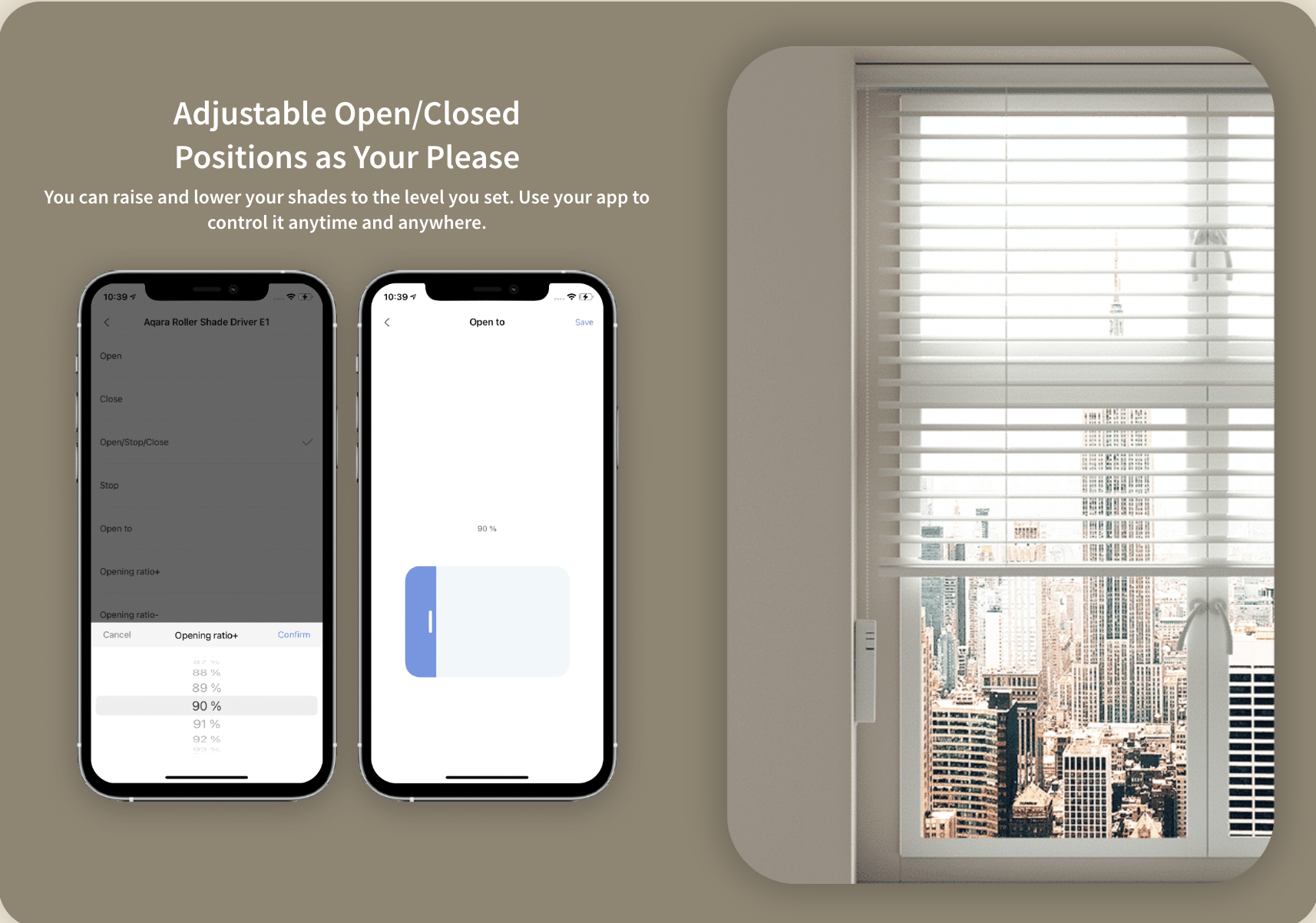

| Position Control | Precise percentage control (0-100%) |
| Calibration | Automatic open/close limit setting |
| Operating Temperature | -10°C to 50°C |
| Installation | Tool-free installation with included adapters |
| Dimensions | 150 × 80 × 80 mm |
| Weight | Approx. 500g |
| Certifications | CE, RoHS, Zigbee certified |
