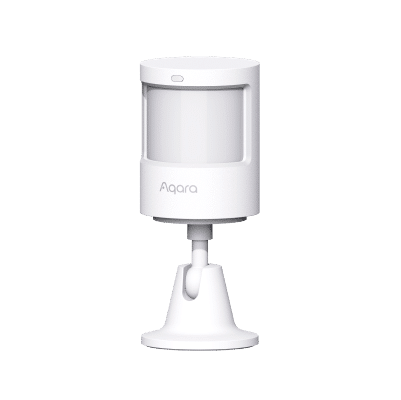

Aqara Motion and Light Sensor P2
Dual-function sensor with motion detection and ambient light sensing
Intelligent Motion and Light Sensing for Smart Automation
The Aqara Motion and Light Sensor P2 combines precise motion detection with ambient light sensing in a compact, discreet design. It automatically triggers smart home scenes based on movement and lighting conditions, making it perfect for energy-efficient lighting control, security monitoring, and home automation.
How It Works
The sensor uses passive infrared (PIR) technology to detect human movement within its coverage area, while simultaneously monitoring ambient light levels through its built-in light sensor. This dual functionality allows for intelligent automation – for example, turning lights on only when motion is detected AND ambient light is below a certain level, ensuring energy isn’t wasted during daylight hours.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RTCGQ14LM |
| Detection Technology | PIR Motion + Ambient Light Sensor |

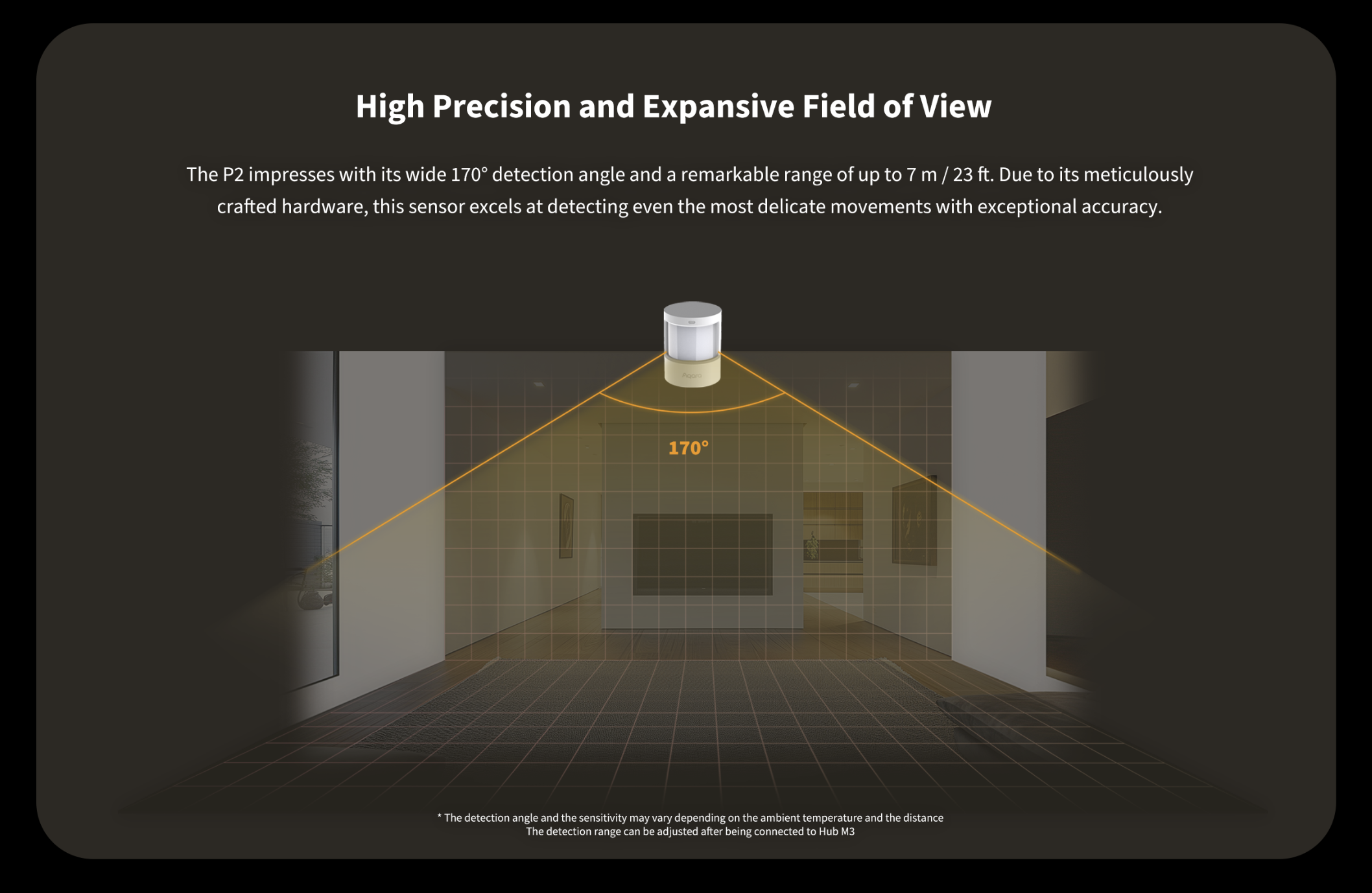

| Detection Range | Up to 7 meters, 170° wide angle |
| Detection Interval | Adjustable (10s to 30min) |
| Light Detection Range | 0-1000 lux |
| Wireless Protocol | Zigbee 3.0 |

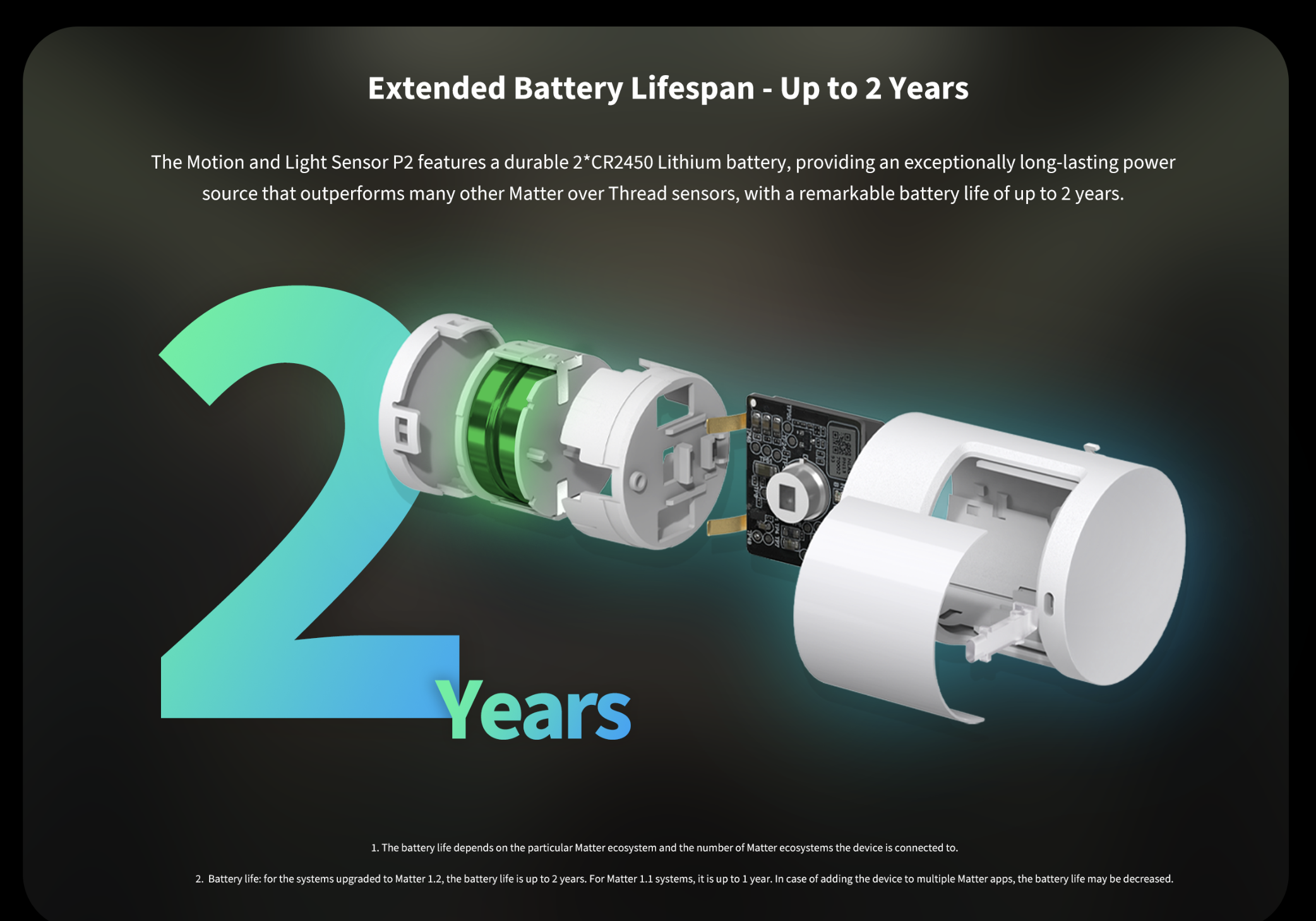

| Battery Type | CR2450 Coin Cell |
| Battery Life | Up to 2 years (normal use) |
| Detection Angle | 170° wide angle |
| Installation | Wall mount, magnetic base |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 45 × 45 × 25 mm |
