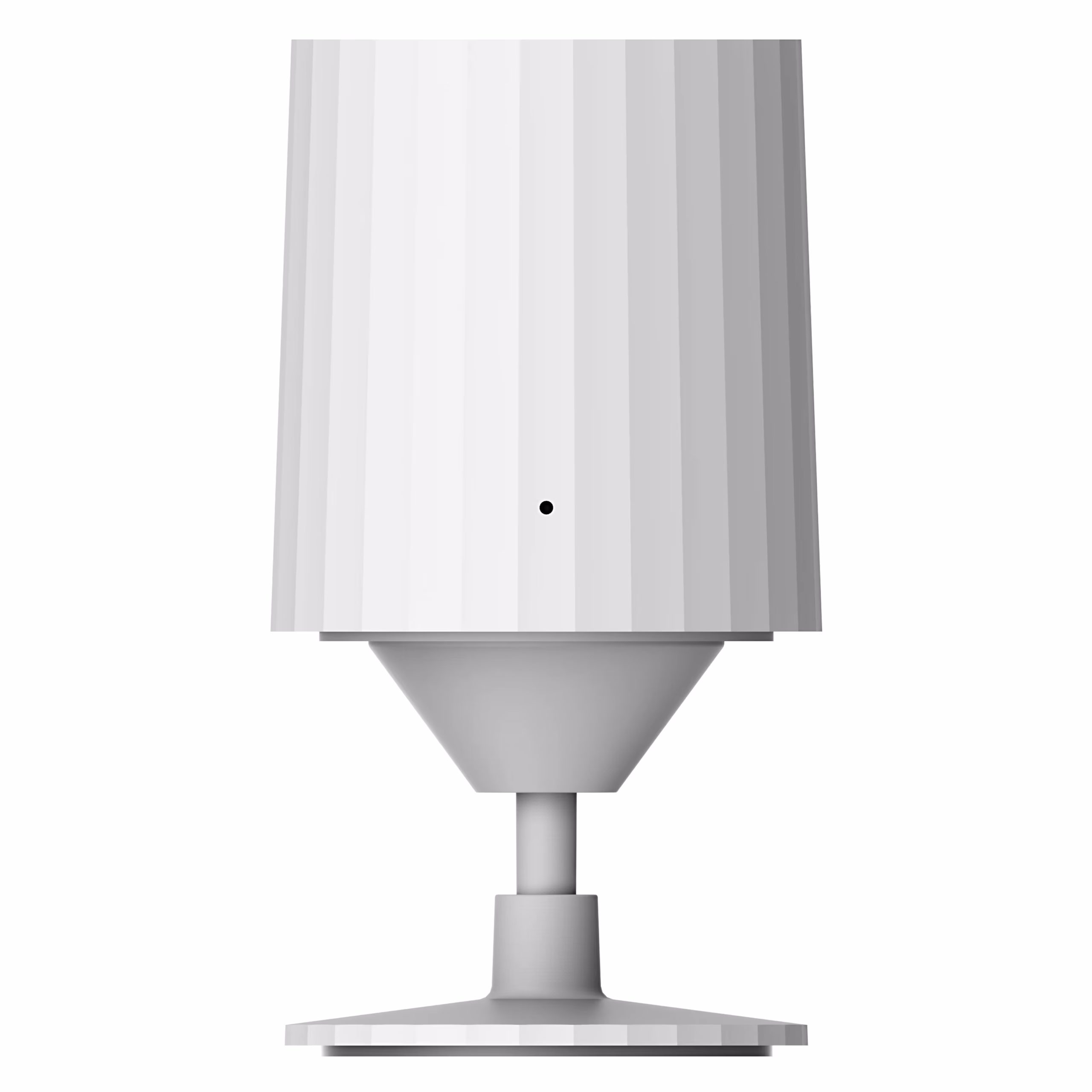

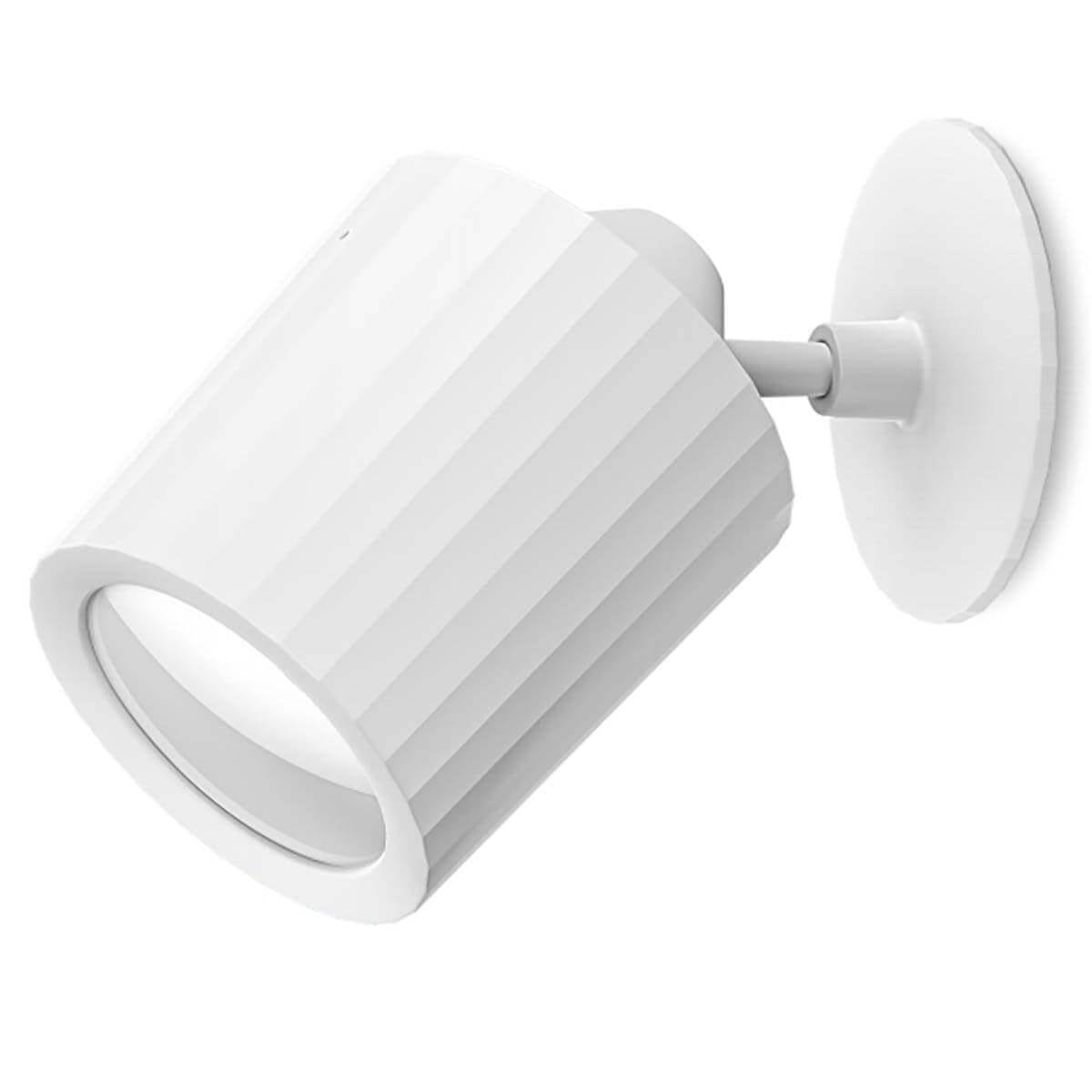

RiVaSmart Smart Human Infrared Detector M1 Series
Advanced PIR motion sensor with Matter support for smart home security
Advanced Motion Detection with Matter Compatibility
The RiVaSmart Smart Human Infrared Detector M1 Series is a sophisticated PIR motion sensor featuring native Matter support for seamless integration across all major smart home platforms. With advanced pet immunity technology and long battery life, it provides reliable human detection while minimizing false alarms.
How It Works
The M1 Series uses passive infrared (PIR) technology with Matter over Thread connectivity, allowing direct integration with Matter-compatible ecosystems without requiring a proprietary hub. The sensor detects human movement through infrared radiation changes and uses smart algorithms to distinguish between humans and pets, sending instant notifications and triggering automations across your connected smart home devices.
Technical Specifications
| Specification | Details |
|---|---|
| Model Series | M1 Series |
| Detection Technology | Passive Infrared (PIR) |
| Wireless Protocol | Matter over Thread |
| Detection Range | Up to 10 meters, 120° wide angle |
| Pet Immunity | Up to 20kg pets |
| Detection Sensitivity | Adjustable via app |
| Battery Type | CR123A lithium battery |
| Battery Life | Up to 3 years (normal use) |
| Installation | Wall mounting, magnetic base |
| Detection Delay | Configurable (10s to 60min) |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 85 × 60 × 40 mm |
| Weight | Approx. 100g |
| Certifications | Matter, CE, RoHS |
