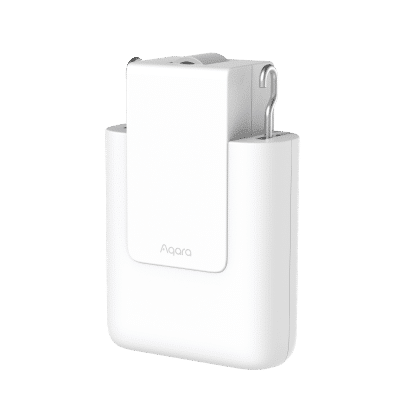

Aqara Curtain Driver E1 (Track Version)
Smart curtain motor for track curtain systems
Smart Automation for Track Curtain Systems
The Aqara Curtain Driver E1 (Track Version) is a smart curtain motor designed specifically for track curtain systems. Featuring quiet operation, easy installation, and seamless smart home integration, it automates your curtain opening and closing routines, allowing for scheduled operation, voice control, and scene automation with other Aqara devices.
How It Works

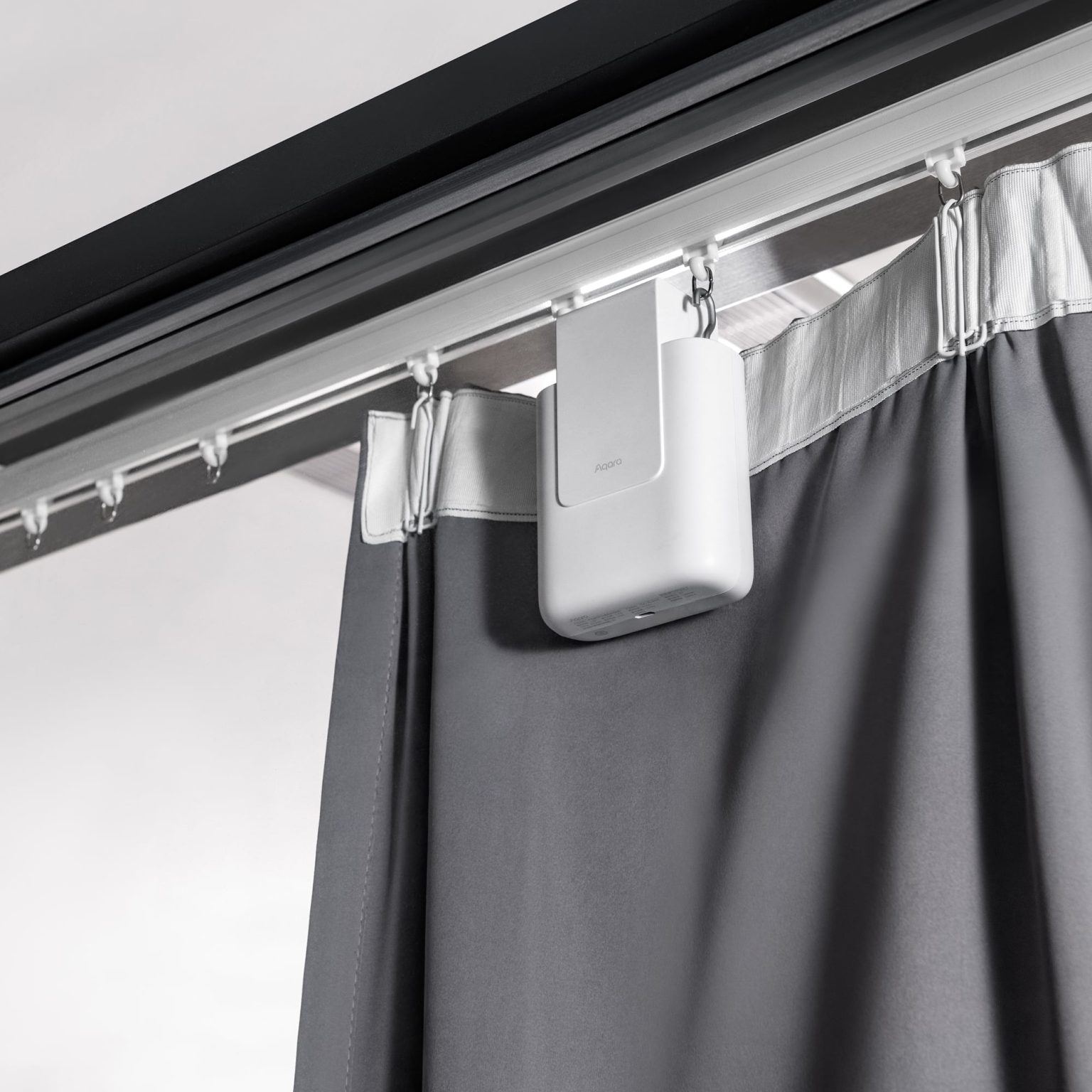

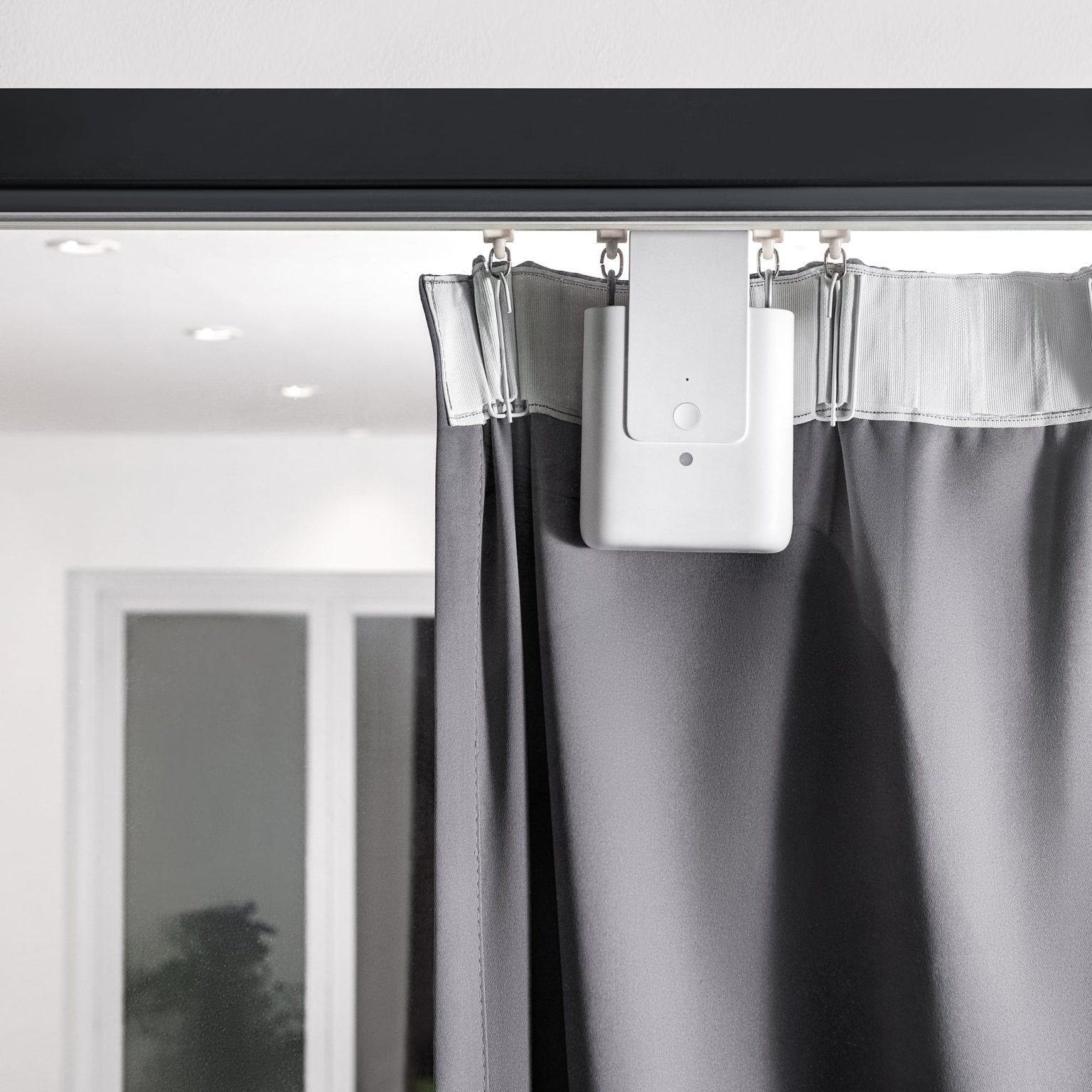

The E1 Track Version attaches directly to your existing track curtain system and moves the curtains along the track using a quiet, powerful motor. It connects to your smart home via Zigbee and can be controlled through the Aqara app, voice commands, or automated schedules. The device supports calibration to set open/close limits and can be integrated with other smart devices to create scenes like automatically closing curtains at sunset or opening them when your morning alarm goes off.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CN152 |

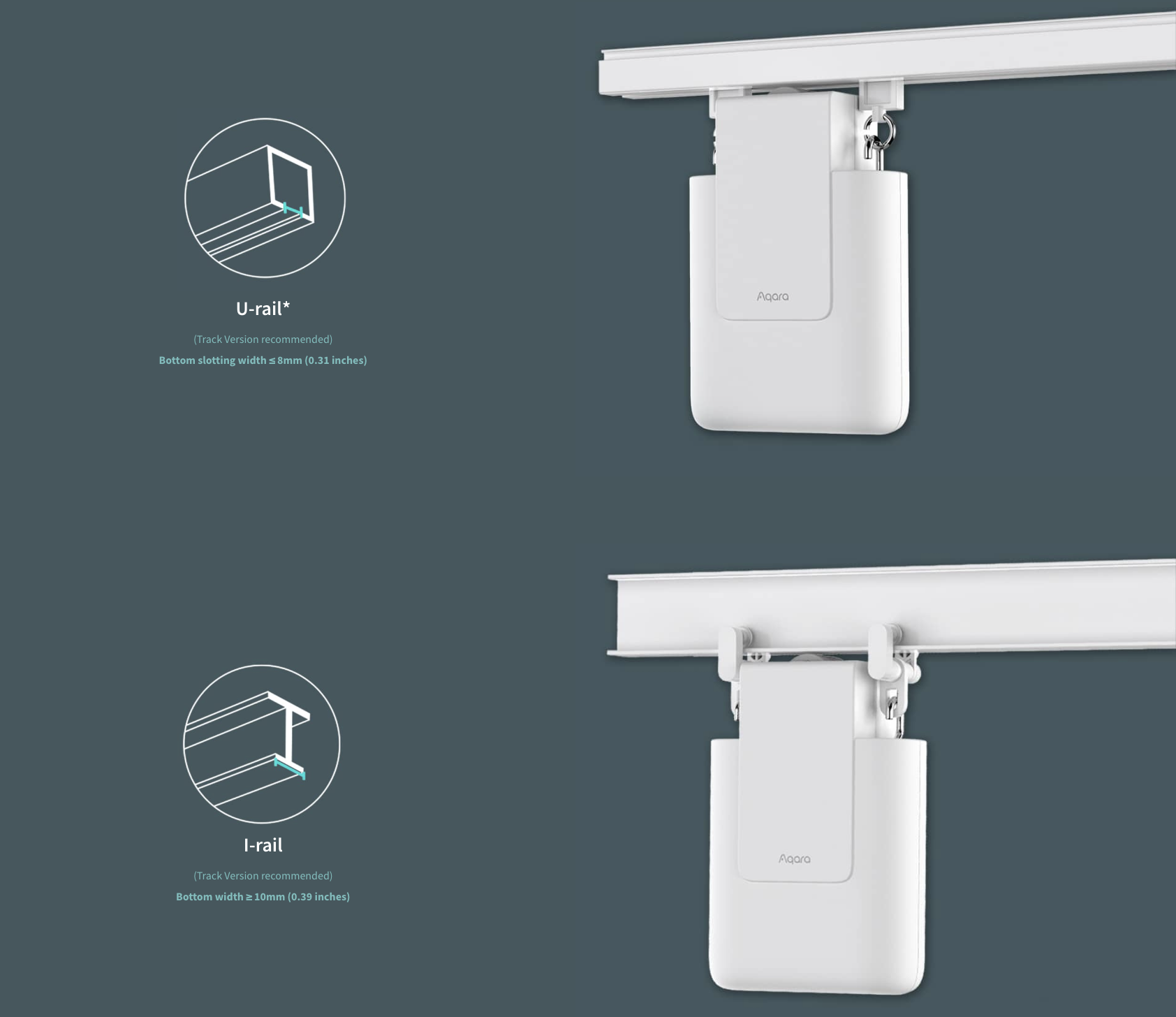

| Compatibility | Track curtain systems (I-track, U-track) |
| Max Curtain Weight | Up to 50kg |
| Max Track Length | Up to 8 meters |
| Motor Type | Quiet DC motor |
| Noise Level | < 35dB during operation |
| Power Supply | DC 24V (power adapter included) |

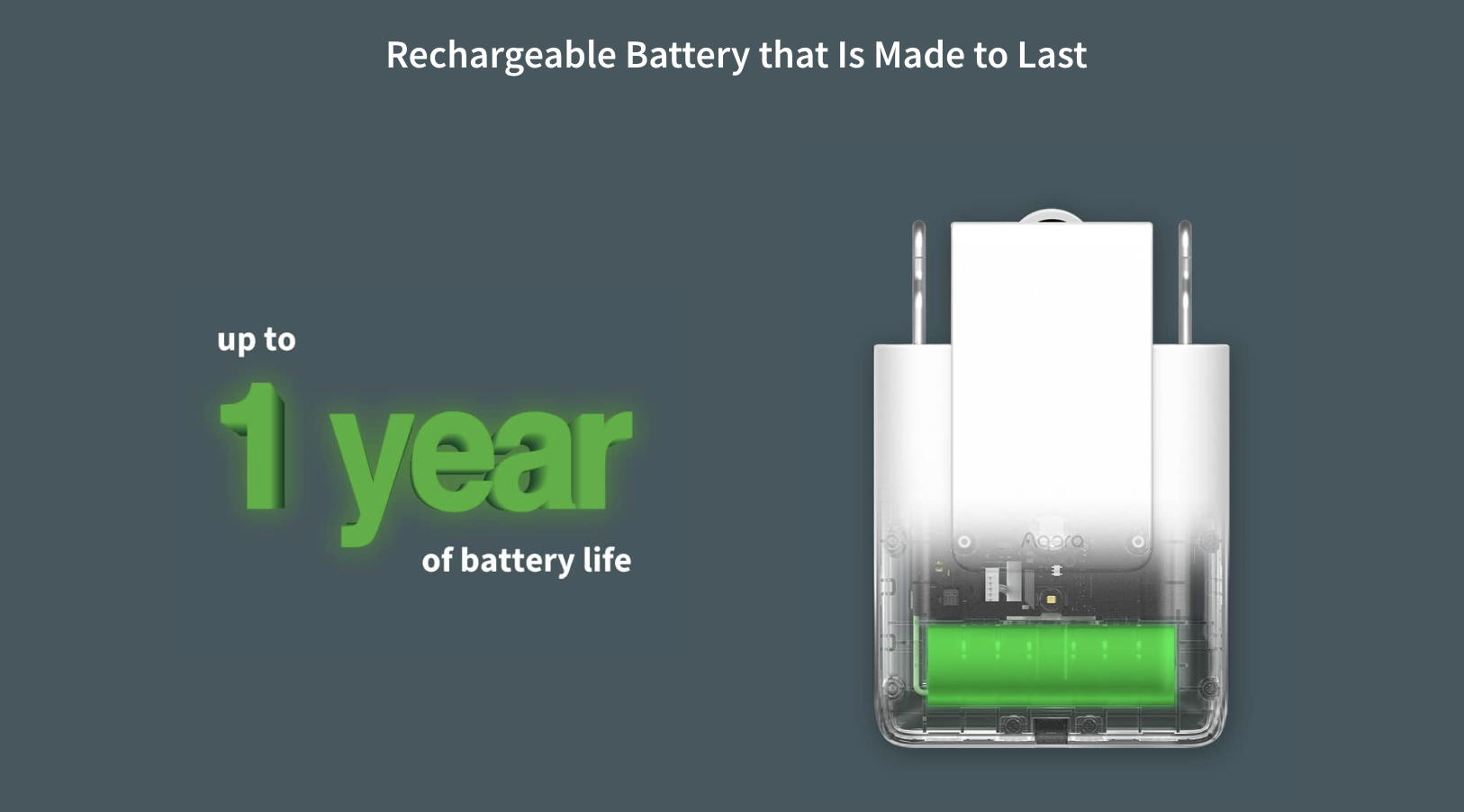

| Battery Backup | Built-in rechargeable battery (manual operation during power outage) |
| Wireless Protocol | Zigbee 3.0 |
| Control Methods | App control, voice control, scheduled automation, manual buttons |
| Calibration | Automatic open/close limit setting |
| Operating Temperature | -10°C to 50°C |
| Installation | Tool-free installation on track |
| Dimensions | 120 × 85 × 65 mm |
| Weight | Approx. 450g |
| Certifications | CE, RoHS, Zigbee certified |
