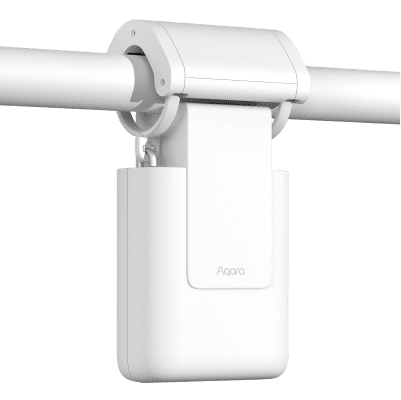

Aqara Curtain Driver E1 (Rod Version)
Smart curtain motor for rod curtain systems
Smart Automation for Rod Curtain Systems
The Aqara Curtain Driver E1 (Rod Version) is a smart curtain motor designed specifically for rod curtain systems. Featuring universal compatibility with various curtain rod diameters, quiet operation, and easy installation, it automates your curtain opening and closing routines. Enjoy scheduled operation, voice control, and seamless integration with other Aqara smart home devices.
How It Works
The E1 Rod Version attaches to your existing curtain rod and moves the curtains by rotating around the rod using a quiet, powerful motor. It connects to your smart home via Zigbee and can be controlled through the Aqara app, voice commands, or automated schedules. The device supports calibration to set open/close positions and can be integrated with other smart devices to create automated scenes like closing curtains at sunset or opening them with your morning alarm.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CN151 |
| Compatibility | Curtain rods (16-28mm diameter) |
| Max Curtain Weight | Up to 6kg |
| Max Curtain Width | Up to 5 meters |
| Motor Type | Quiet DC motor |
| Noise Level | < 35dB during operation |
| Power Supply | DC 24V (power adapter included) |
| Battery Backup | Built-in rechargeable battery (manual operation during power outage) |
| Wireless Protocol | Zigbee 3.0 |
| Control Methods | App control, voice control, scheduled automation, manual buttons |
| Calibration | Automatic open/close limit setting |
| Rod Diameter | 16mm – 28mm |
| Operating Temperature | -10°C to 50°C |
| Installation | Tool-free installation on curtain rod |
| Dimensions | 110 × 80 × 80 mm |
| Weight | Approx. 420g |
| Certifications | CE, RoHS, Zigbee certified |
