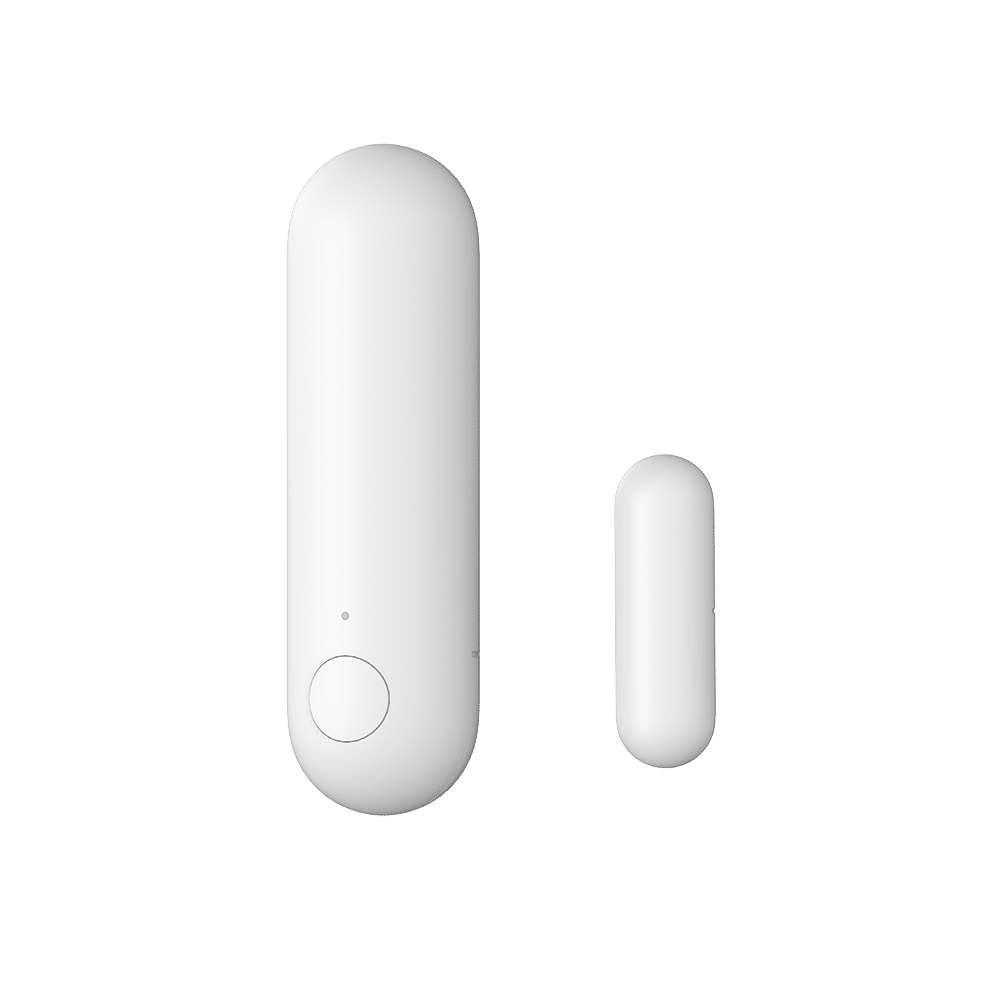

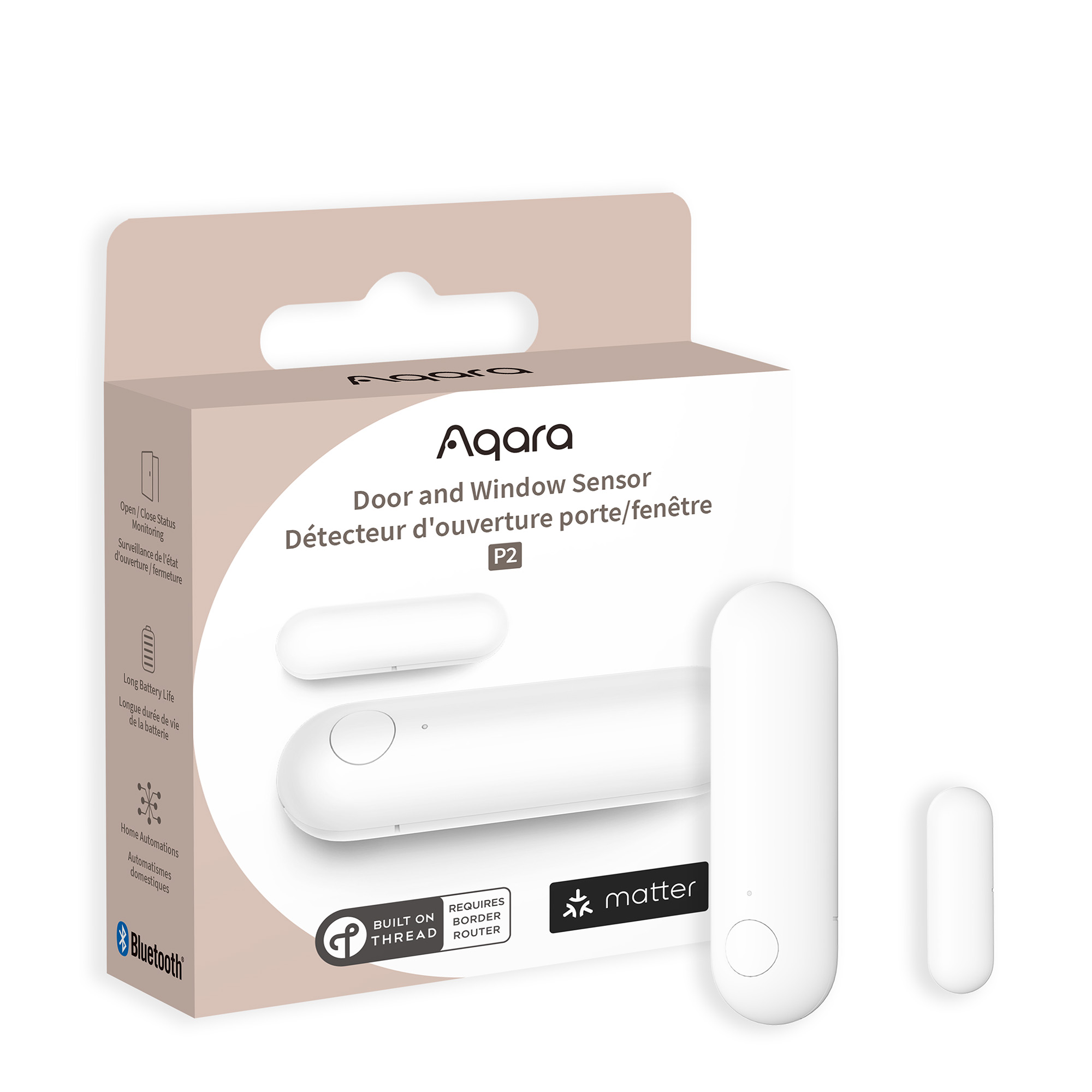

Aqara Door and Window Sensor P2
Compact magnetic contact sensor for door and window status monitoring
Essential Security for Your Smart Home

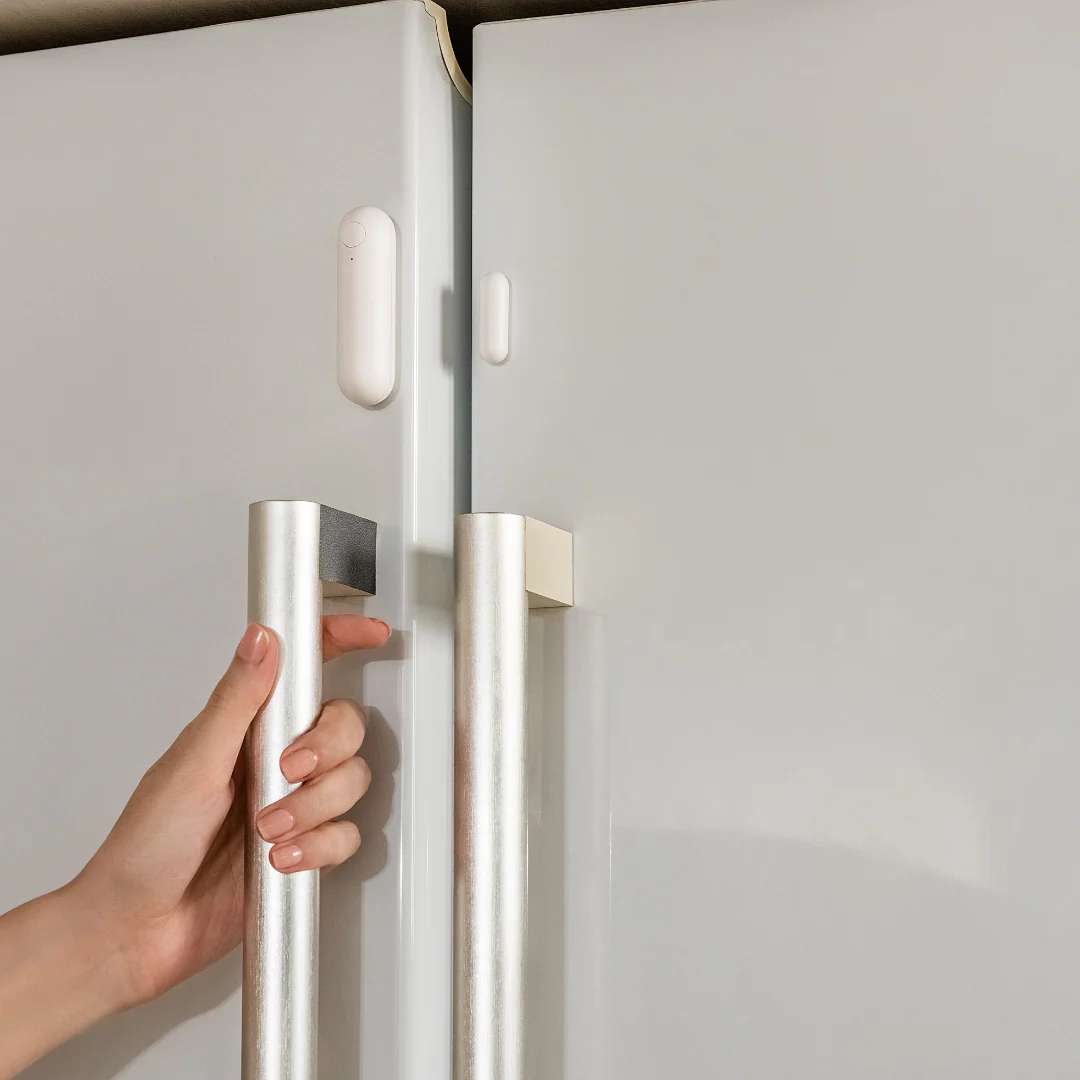

The Aqara Door and Window Sensor P2 is a sleek, compact sensor that uses magnetic contact technology to monitor the open/close status of doors, windows, cabinets, and other entry points. With its minimalist design and reliable performance, it provides essential security monitoring and automation triggers for your smart home.
How It Works
The sensor uses a magnetic reed switch that activates when the magnet is within 22mm. When the door or window is closed, the magnet keeps the switch closed. When opened, the magnet moves away, opening the switch and triggering the status change.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MCCGQ14LM |
| Detection Technology | Magnetic Reed Switch |
| Detection Distance | Up to 22mm separation |
| Wireless Protocol | Zigbee 3.0 |
| Battery Type | CR1632 Coin Cell |
| Battery Life | Up to 2 years (normal use) |
| Operating Temperature | -10°C to 50°C |
| Sensor Dimensions | 38 × 18 × 8 mm |
| Response Time | < 1 second |
Entering the Matter Era
Matter provides a more intuitive, unified experience for users. It simplifies setup and management of devices and allows seamless interoperability across controllers, devices and platforms.

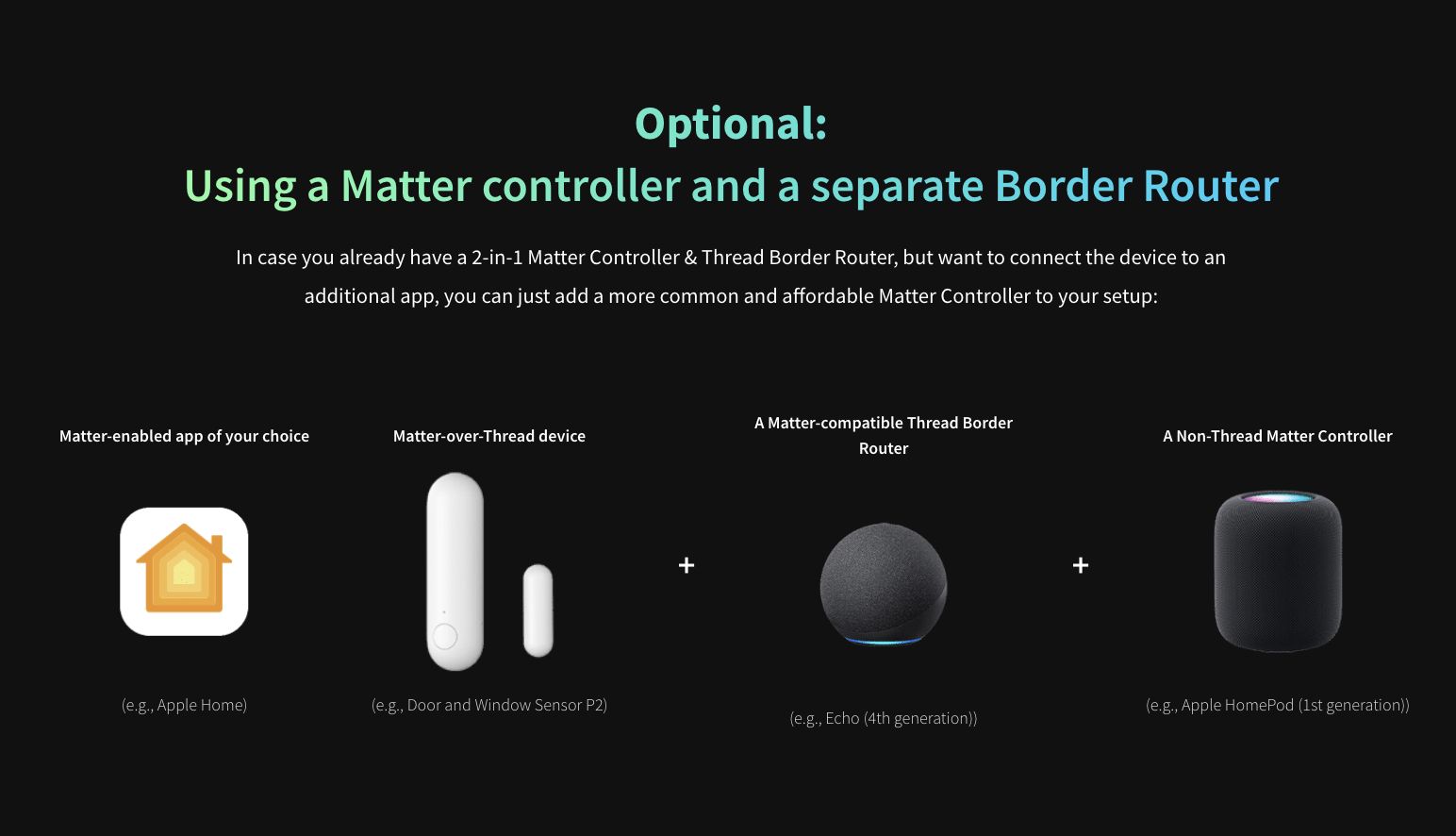

For best functionality and Aqara Home support: Aqara Hub M3 provides full Matter controller and Thread Border Router capabilities, allowing you to add Aqara Matter over Thread devices to Aqara Home with additional functionalities and improvements.
