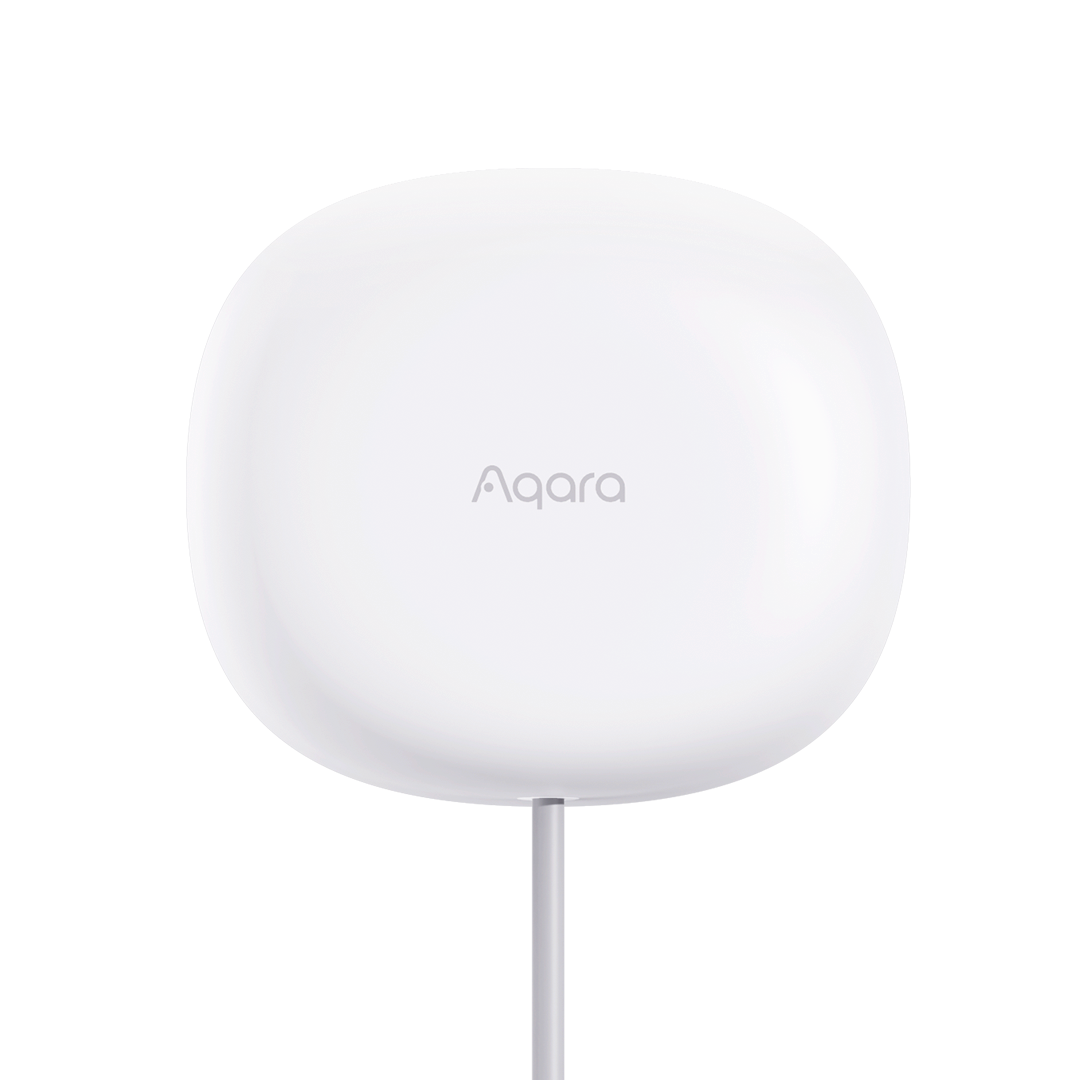

Aqara Presence Sensor FP1E
Millimeter-wave radar presence sensor with enhanced detection capabilities
Advanced Presence Detection with Enhanced Precision

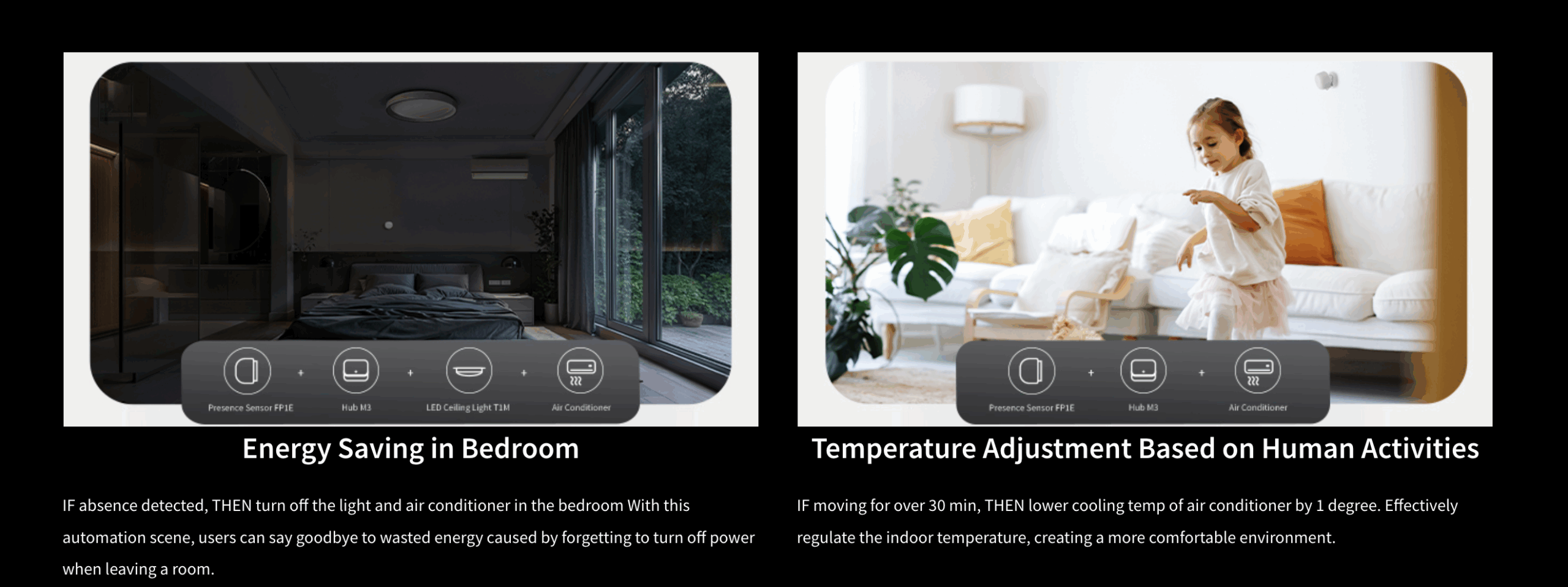

The Aqara Presence Sensor FP1E utilizes millimeter-wave radar technology to detect human presence with exceptional accuracy. It can sense even subtle movements and stationary presence, making it ideal for smart lighting control, security monitoring, and energy-saving automation in residential and commercial spaces.
How It Works
The FP1E emits millimeter-wave radar signals and analyzes the reflected waves to detect human presence, movement, and positioning. Unlike traditional infrared sensors, it can detect stationary presence and distinguish between humans and pets, reducing false triggers. The sensor creates a detailed spatial awareness map and can be configured with multiple detection zones for precise automation control.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RPD01 |
| Detection Technology | Millimeter-wave Radar |
| Detection Range | Up to 5 meters |
| Detection Angle | 120° horizontal, 60° vertical |

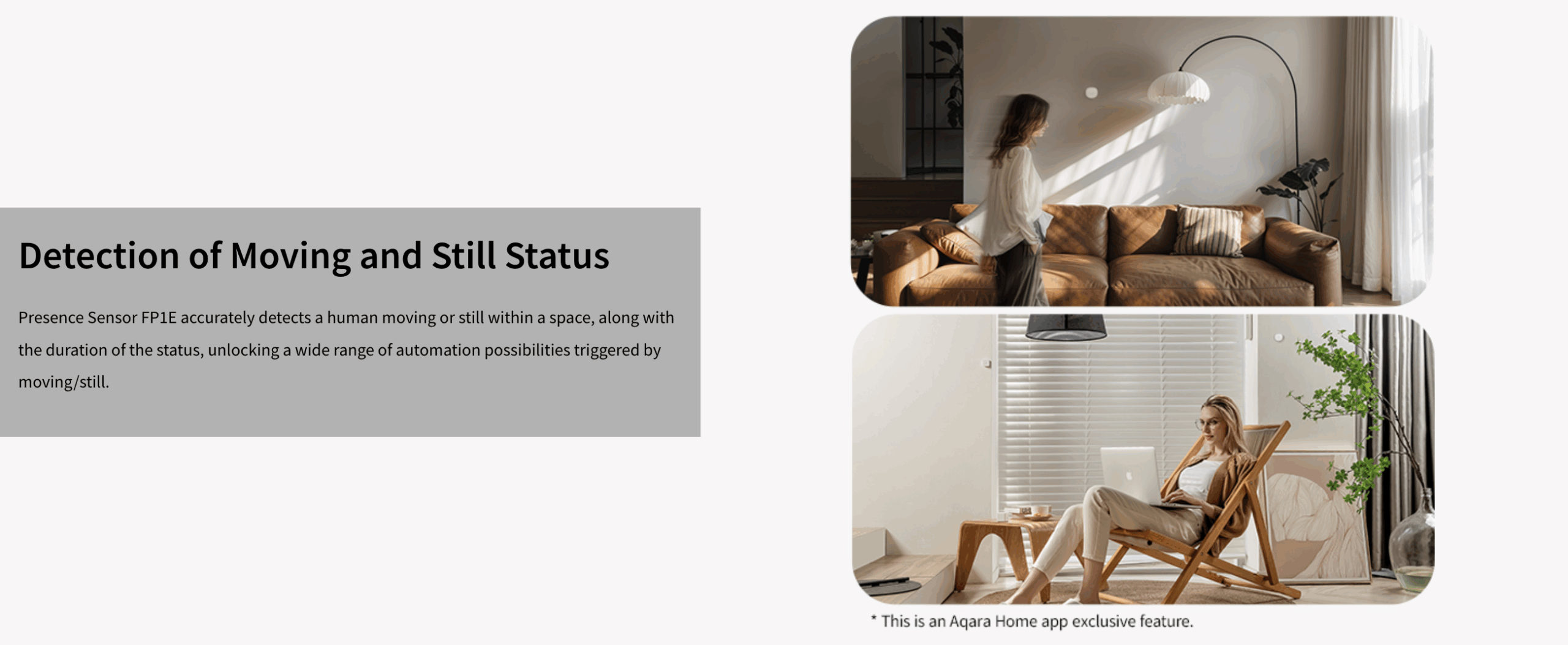

| Detection Capability | Presence, Movement, Static Detection |
| Wireless Protocol | Zigbee 3.0 |
| Power Supply | DC 5V/1A (USB-C) |
| Detection Zones | Up to 6 customizable zones |

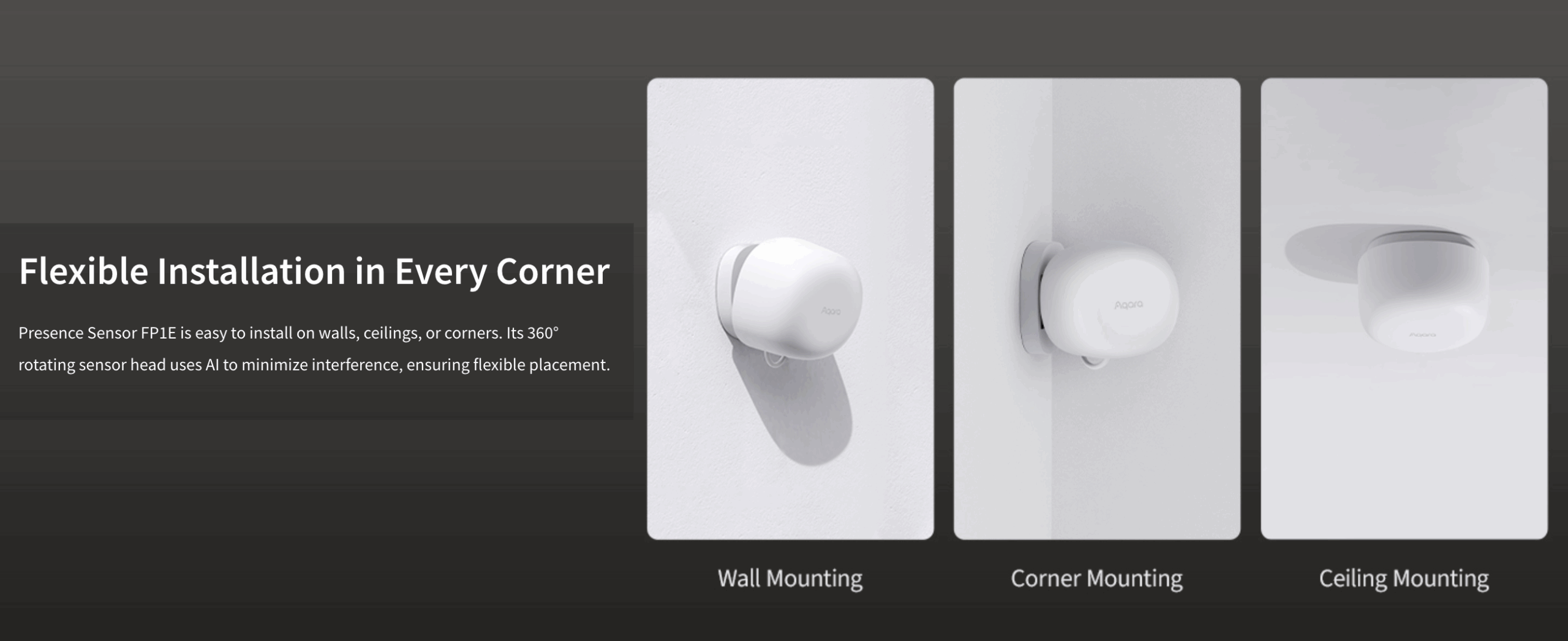

| Installation | Ceiling or wall mount |
| Operating Temperature | -10°C to 40°C |
| Dimensions | 90 × 90 × 25 mm |
